Sonar 3D-15 System
Whether deployed from a vessel, mounted on a pole over the side of a dock, or integrated into an ROV platform, the Sonar 3D-15 System enables users to quickly mobilize and begin acquiring real-time 3D sonar data.
Ready-to-Deploy 3D Imaging Sonar for Offshore, Survey and ROV Operations
Complete Turnkey Package

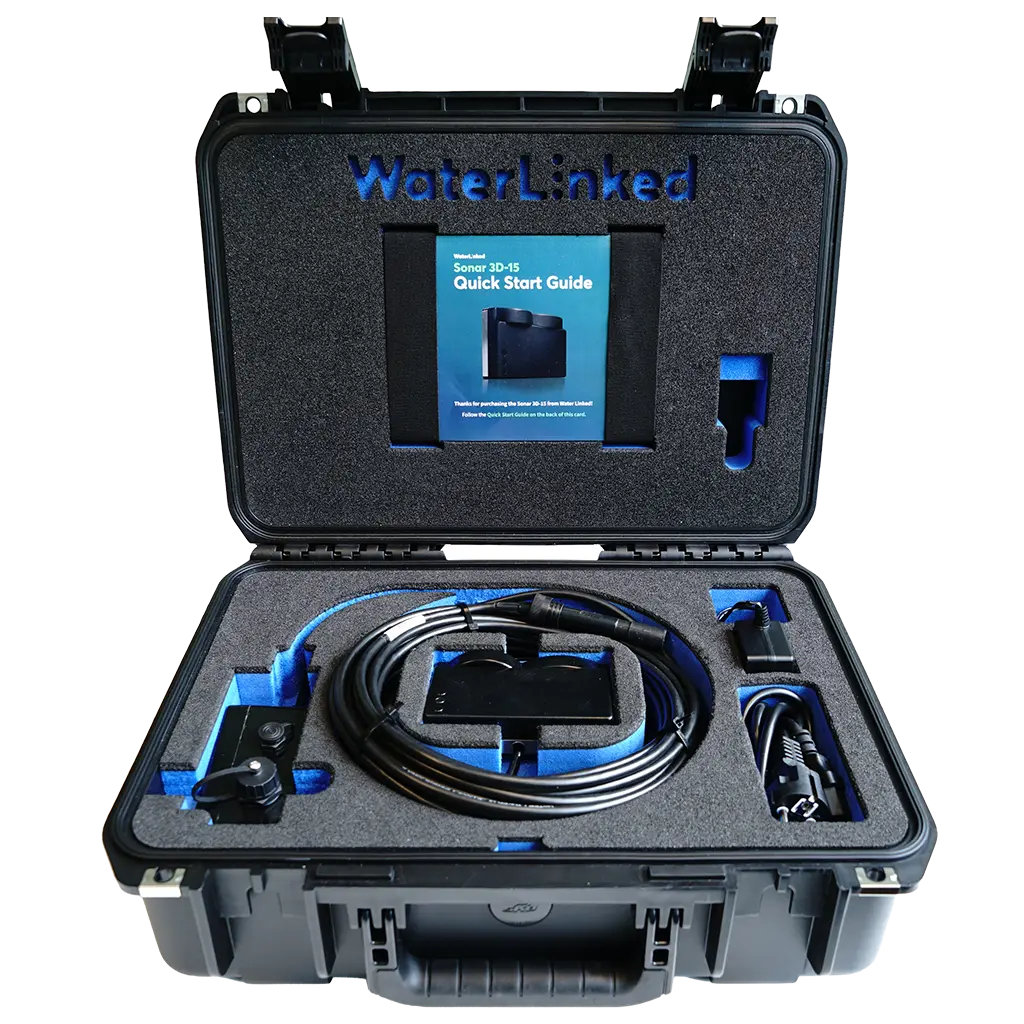

The Sonar 3D-15 System is supplied as a ready-to-use kit, including:

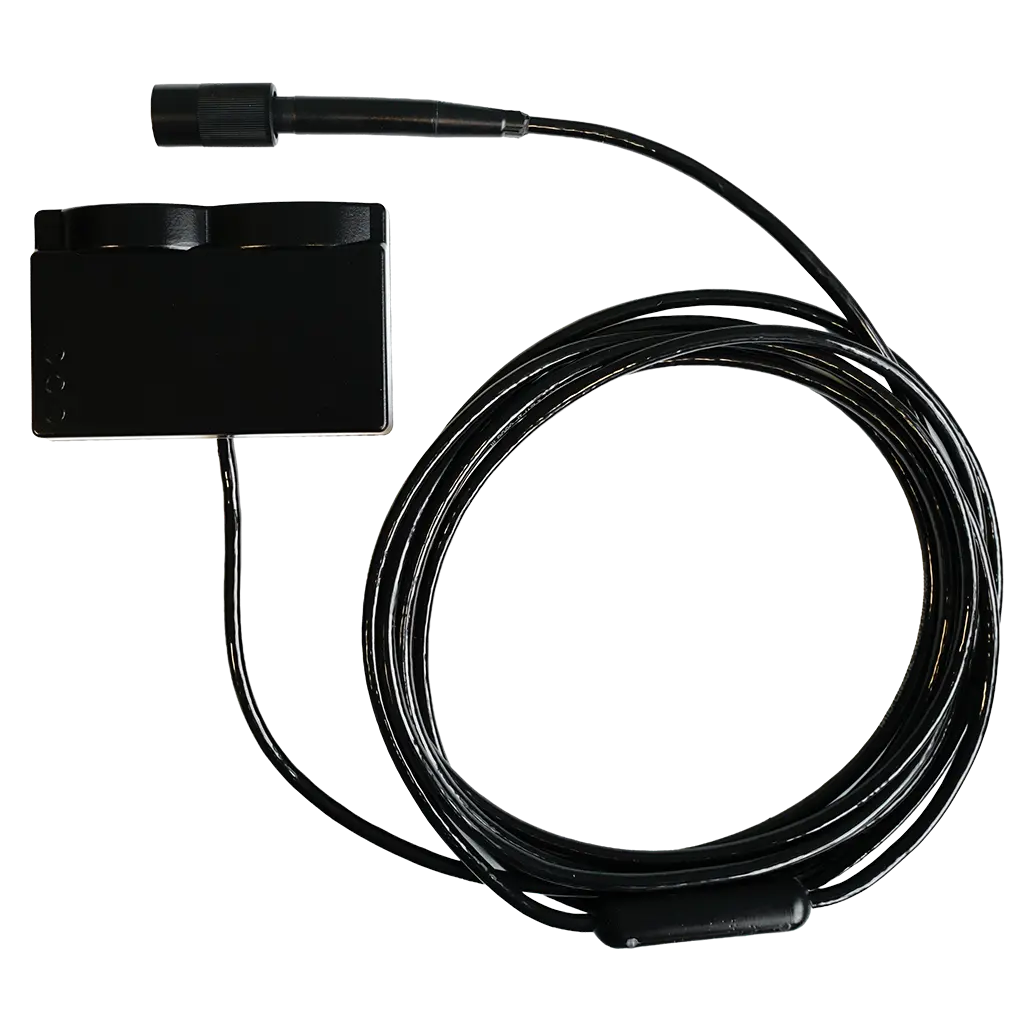

- Sonar 3D-15 with terminated cable
- 1 m mating tail
- 10 m deck cable (extended cable options available)

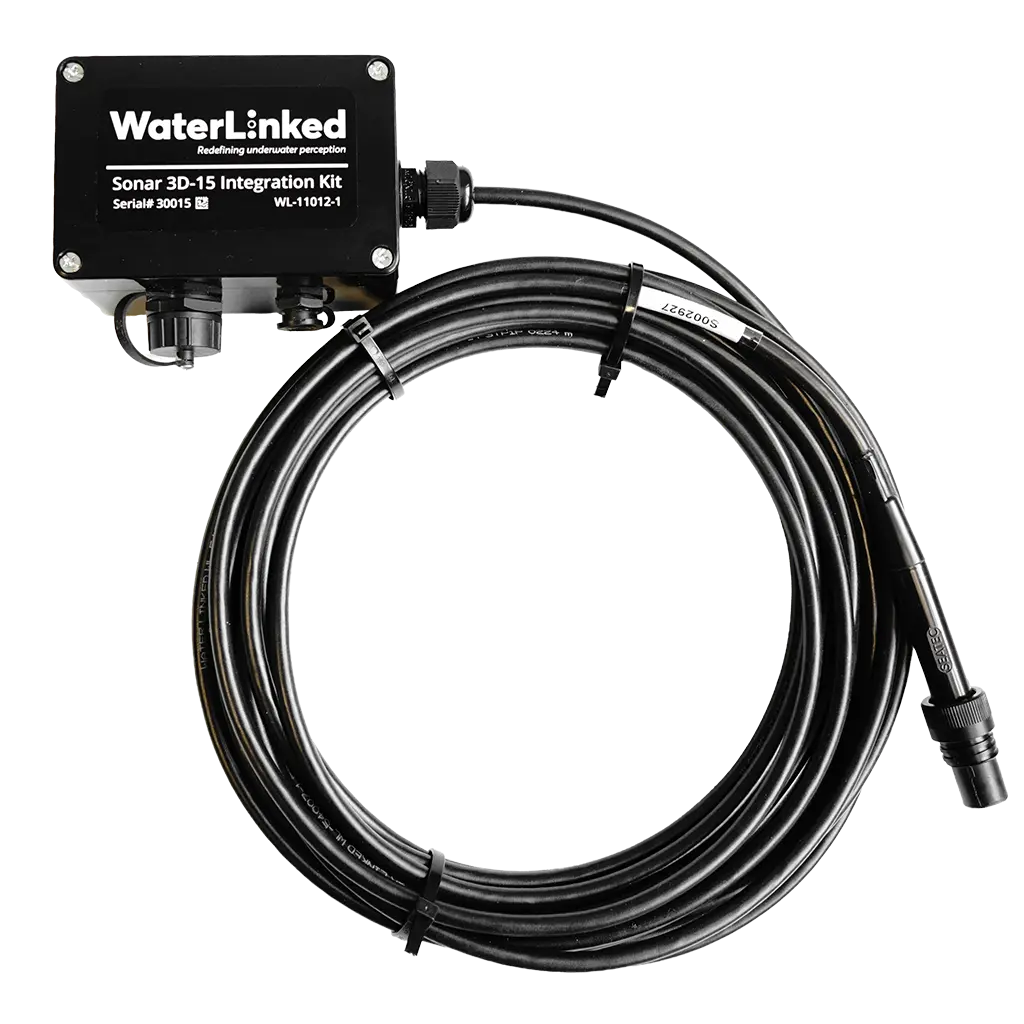

- I/O Interface Box

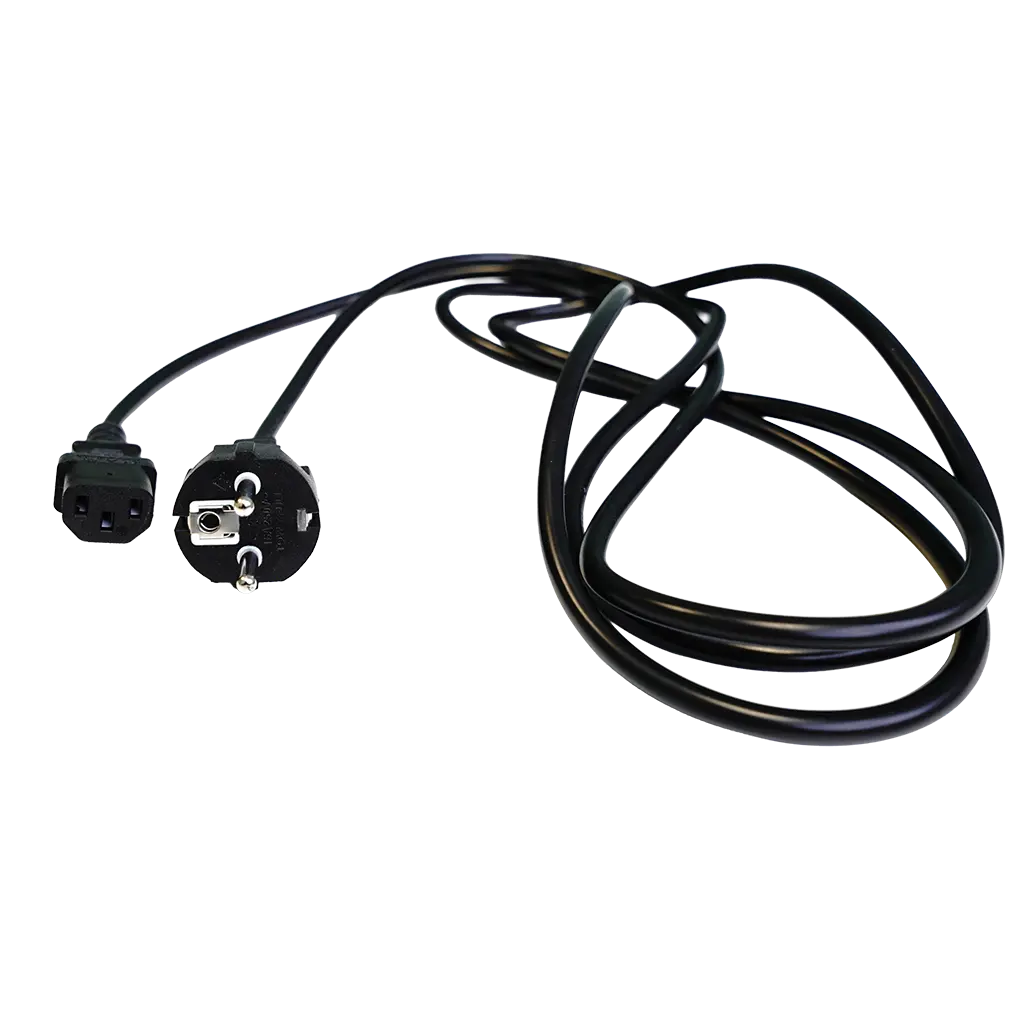

- Power Input
- Ethernet Output
- Deck Cable Connection

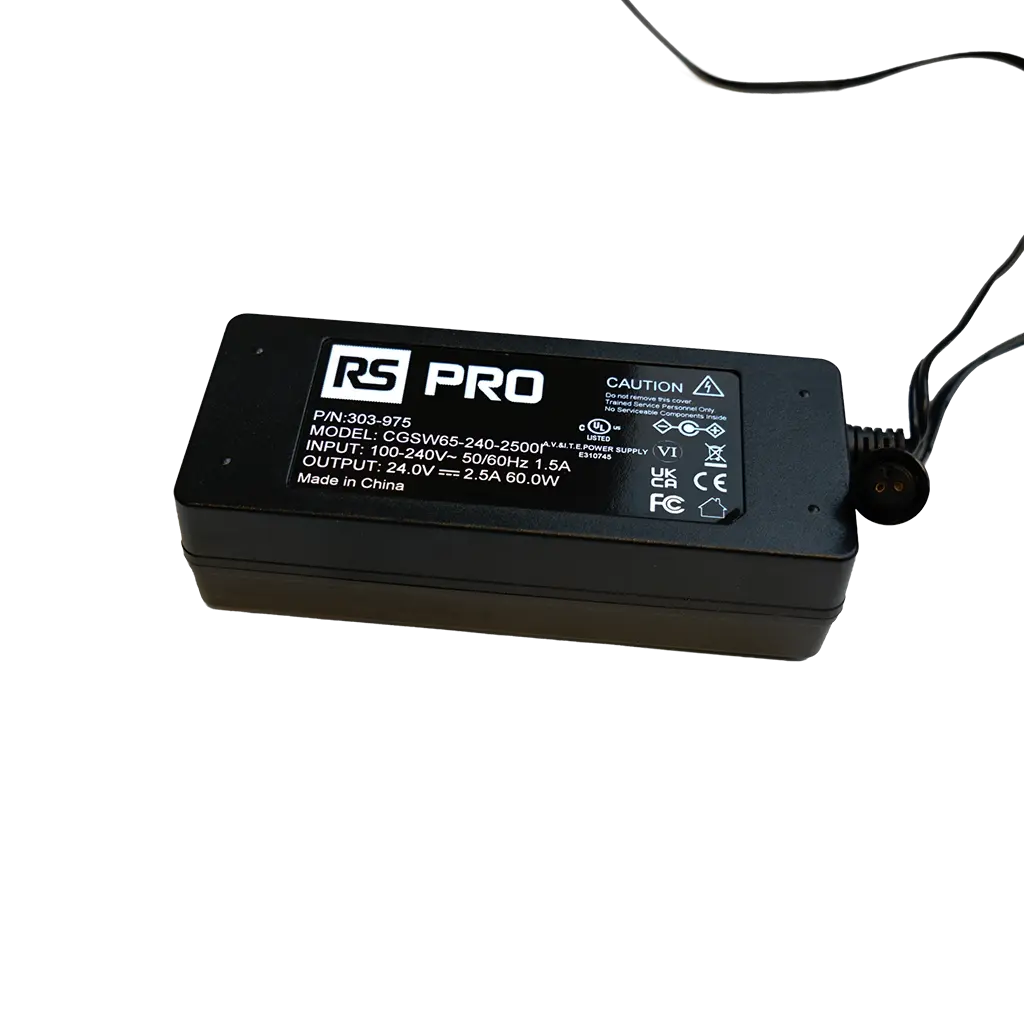

- AC-to-DC power supply

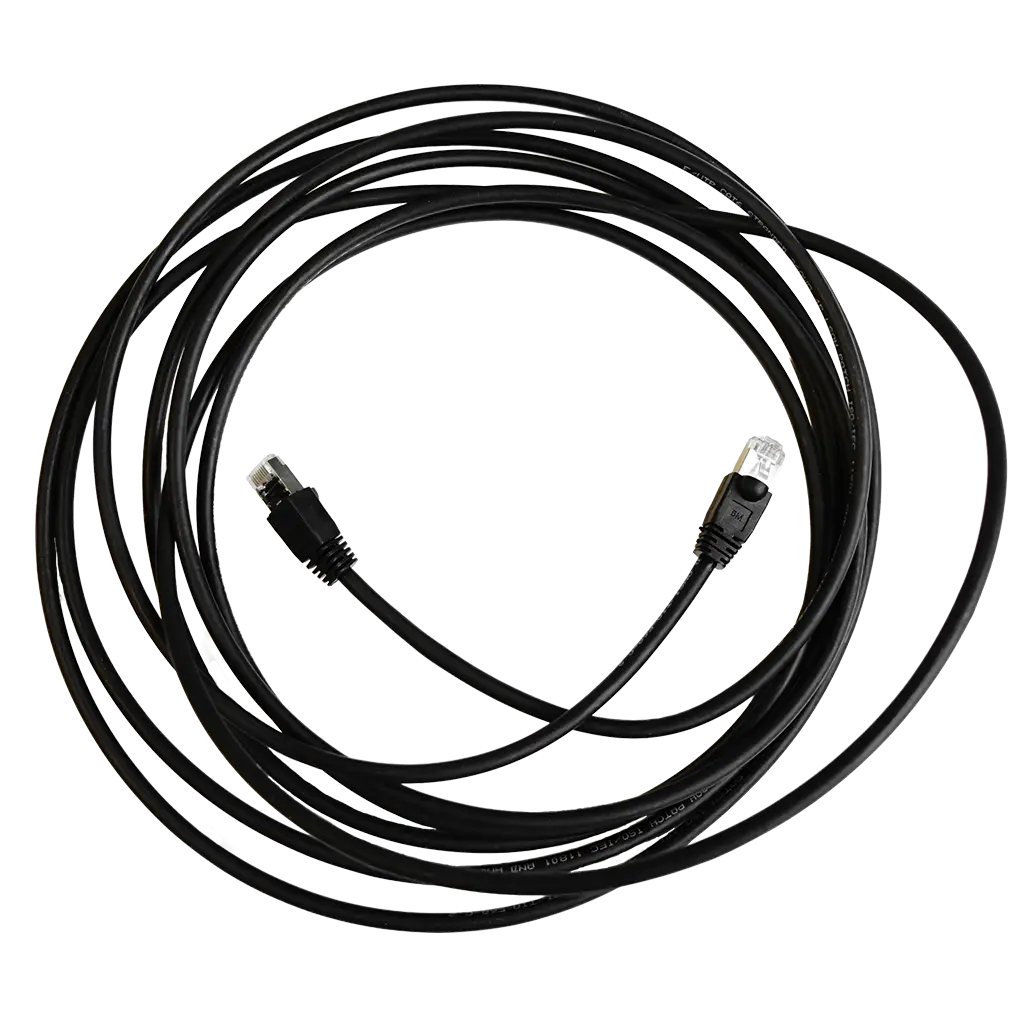

- RJ45 Ethernet cable

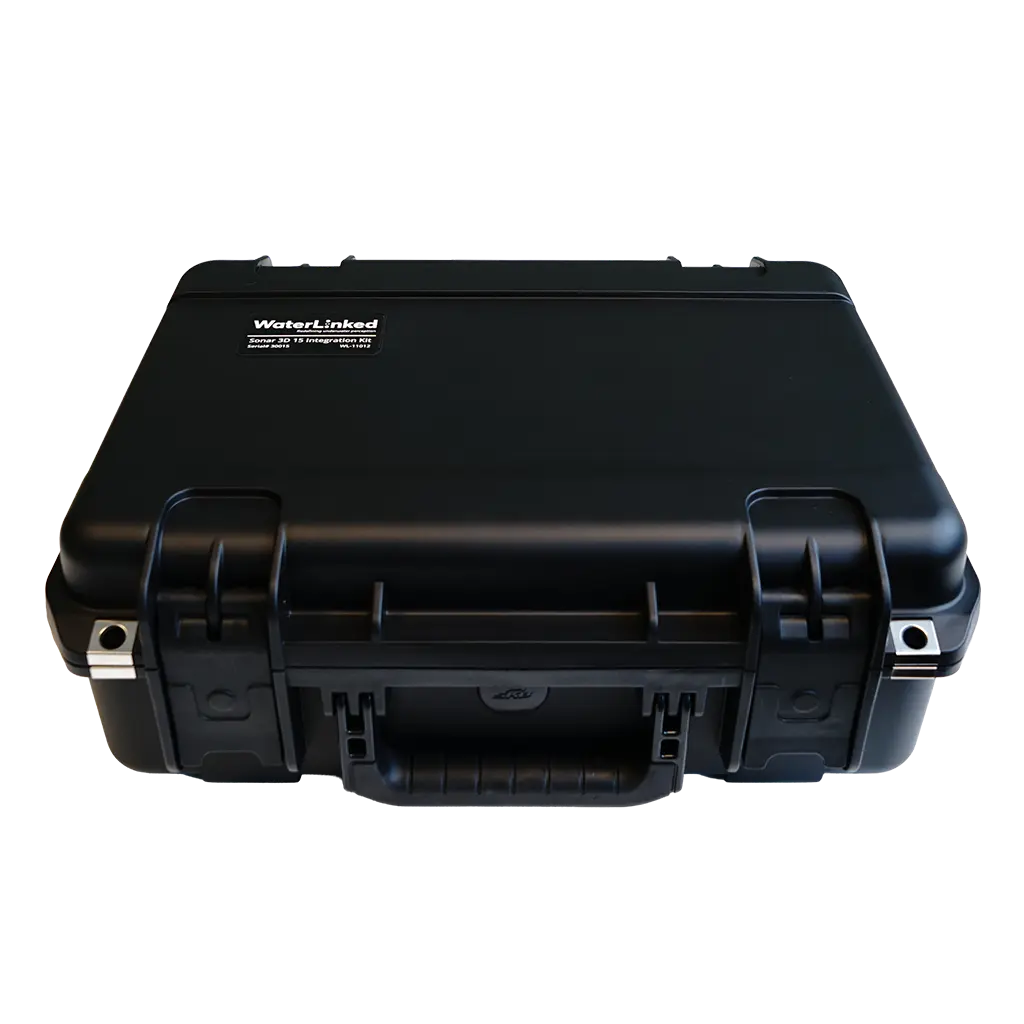

- Rugged transit case for transport and storage
The system utilizes robust subsea connectors designed for offshore and commercial marine operations, ensuring reliable performance in harsh environments.
Designed for Rapid Deployment
Standalone Inspection and Monitoring
For users requiring a simple and effective sonar solution, the Sonar 3D-15 System can operate as a standalone unit without electrical integration into existing equipment.
A typical deployment involves mounting the sonar to a pole, frame, vessel, or dock structure, with the deck cable routed back to a dry area where a computer is located. This configuration allows operators to quickly visualize underwater environments in real time, making it ideal for:
- Port and harbor inspections
- Infrastructure monitoring
- Search and recovery operations
- Environmental surveys
- Temporary offshore deployments
Service Providers and Rental Operations
The Sonar 3D-15 System is particularly suited for service companies, contractors, and equipment rental fleets that require a versatile sonar solution ready for mobilization at short notice.
The complete package can be shipped directly to project sites and used immediately for system verification and operational deployment. When integration with an ROV or subsea platform is required, the supplied mating tail enables straightforward connection to existing junction boxes or vehicle systems.
Typical applications include:
- ROV inspection campaigns
- Offshore energy projects
- Construction support
- Asset integrity surveys
- Emergency response operations
- Rental and demonstration fleets
Built for Operational Flexibility
The Sonar 3D-15 System bridges the gap between standalone operation and full system integration. Users can begin testing and operating the sonar immediately upon receipt while maintaining the flexibility to integrate the sensor into larger subsea systems when required.
The result is a highly portable, rugged, and deployment-ready 3D sonar solution that reduces mobilization time and simplifies offshore operations.
