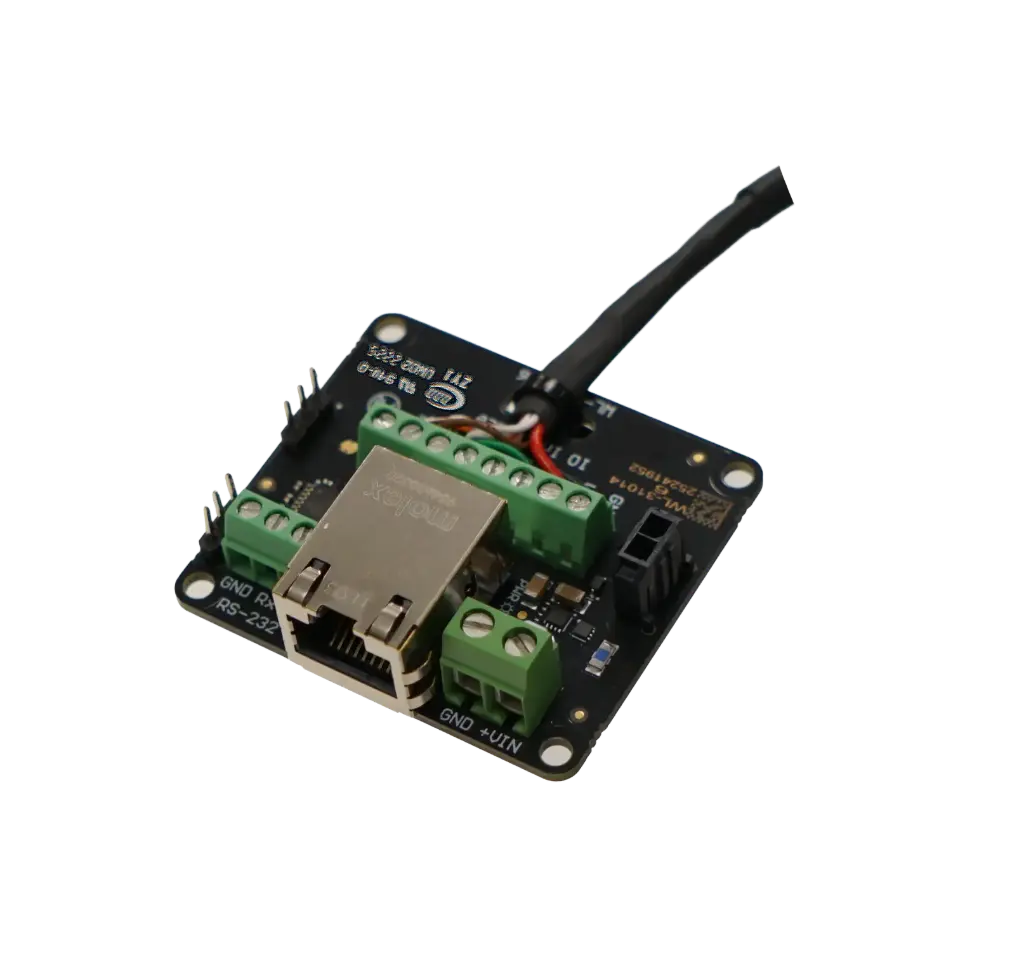

More about the I/O interface electronics
The I/O Interface provides a simple means of connection to Water Linked products. It provides power and communication interfaces for Water Linked sensors. This makes it ideal for bench testing, lab environments, and system diagnostics before deploying the equipment in the field.
Communication options depend on the sensor connected. There is a female RJ45 connector for Ethernet connection and screws terminals for access to RS-232, where the sensor has a Serial UART interface.
Technical specifications
Mechanical
- External dimensions 50.6 x 47 x 18.6 mm (W x L x H)
-
Mounting holes
Fits M3 screws, 45 x 40 mm (W x L)
-
Weight
175 grams
- Operating temperature -10 to 60 °C
Electrical / Interface
- Input voltage 10 V to 30 V
- Power consumption 20 mW
-
Physical interfaces
- Ethernet : RJ45
UART : CONN HEADER VERT
RS-232 : Screw terminal or CONN HEADER VERT
Power In : Screw terminal or Molex Micro Fit
Water Linked Sensor : Screw terminal
Approvals
-
CE certificate
Yes -
RoHS compliant
Yes
