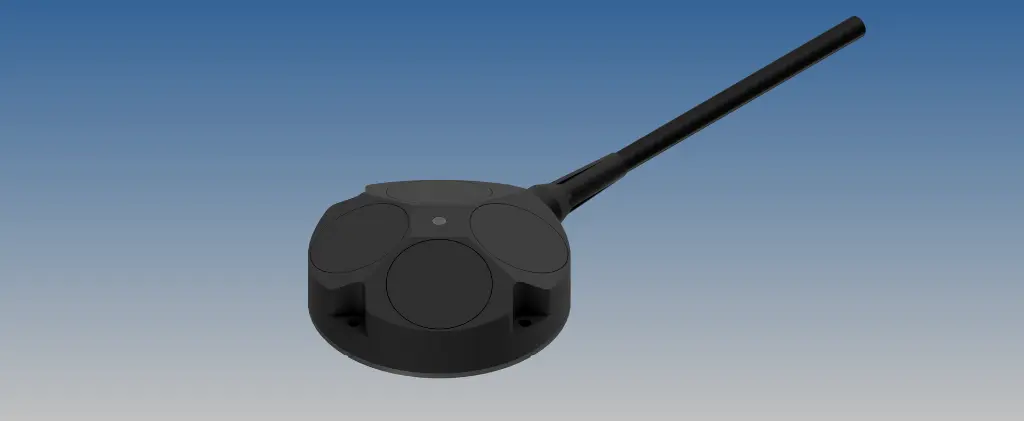

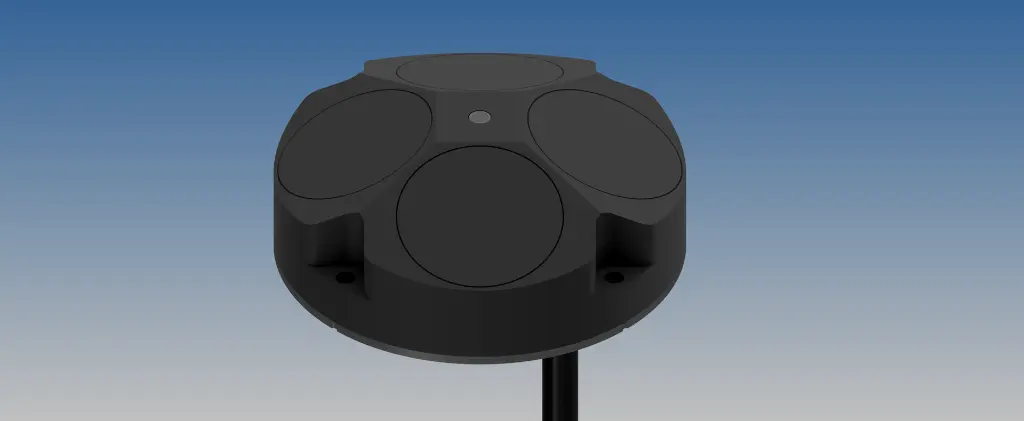

DVL A100
The Water Linked A100 is a compact high accuracy Doppler Velocity Log (DVL) designed to deliver precise velocity measurements in a lightweight, integration-friendly package.
Developed from Water Linked’s extensive experience in subsea navigation, the 1,000 meter depth rated A100 provides reliable bottom-track performance with an acoustic range of up to 100 meters, making it ideal for close-range and mid-range underwater operations.
Optimised for stability and accuracy, the A100 maintains bottom lock at speeds up to 5 m/s and operates at altitudes down to 5cm. This wide operating envelope ensures consistent performance across a variety of vehicle profiles and mission types, suitable for any size of ROV, AUV or USV.
Developed from Water Linked’s extensive experience in subsea navigation, the 1,000 meter depth rated A100 provides reliable bottom-track performance with an acoustic range of up to 100 meters, making it ideal for close-range and mid-range underwater operations.
Optimised for stability and accuracy, the A100 maintains bottom lock at speeds up to 5 m/s and operates at altitudes down to 5cm. This wide operating envelope ensures consistent performance across a variety of vehicle profiles and mission types, suitable for any size of ROV, AUV or USV.
$ 12,560.00
$ 12,560.00
Compact and
light weight
90mm diameter
Working while far from the seabed
30 cm - 100m acoustic range
Unbeatable price/performance
From under $13,000 US
Features
Ethernet and Serial interface
5cm - 100m altitude range
Embedded computer for standalone operation

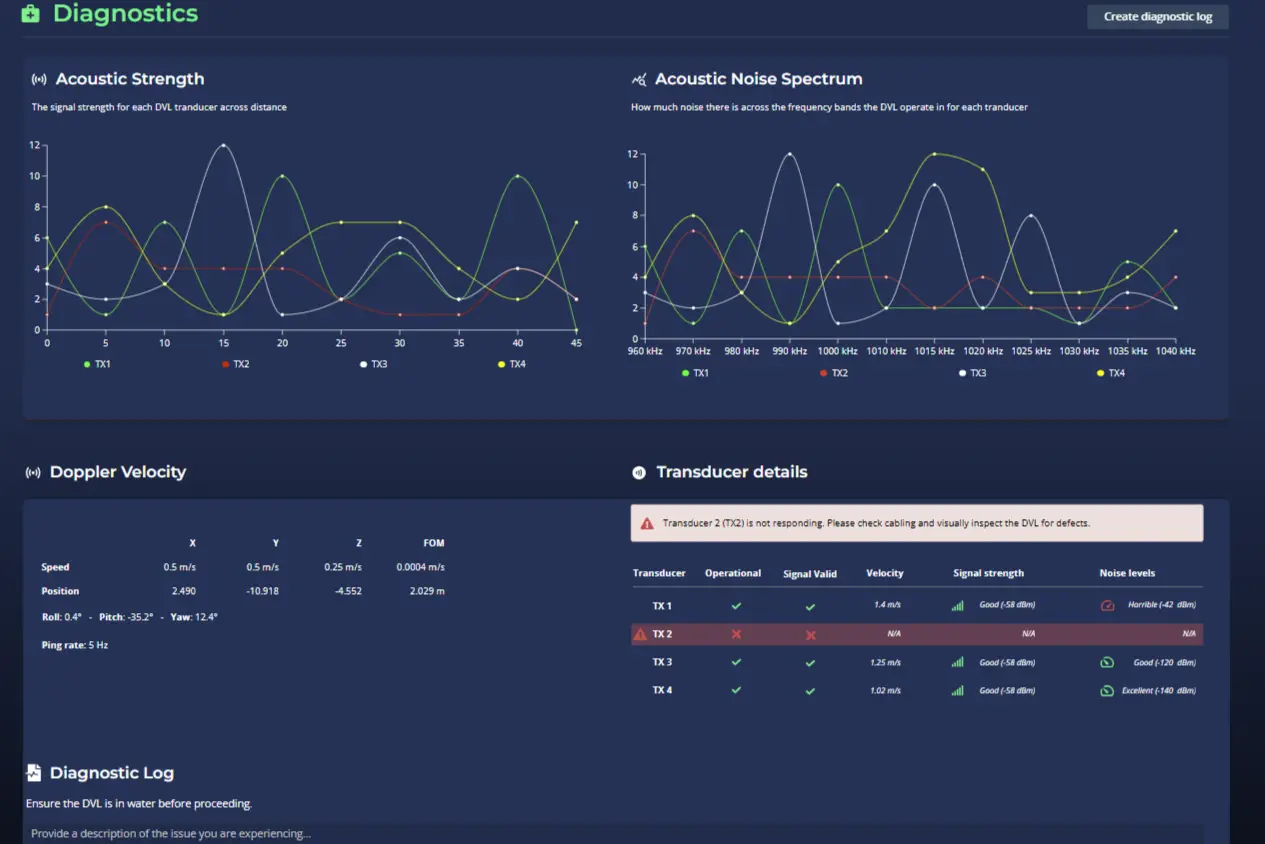

Web GUI with comprehensive diagnostic features

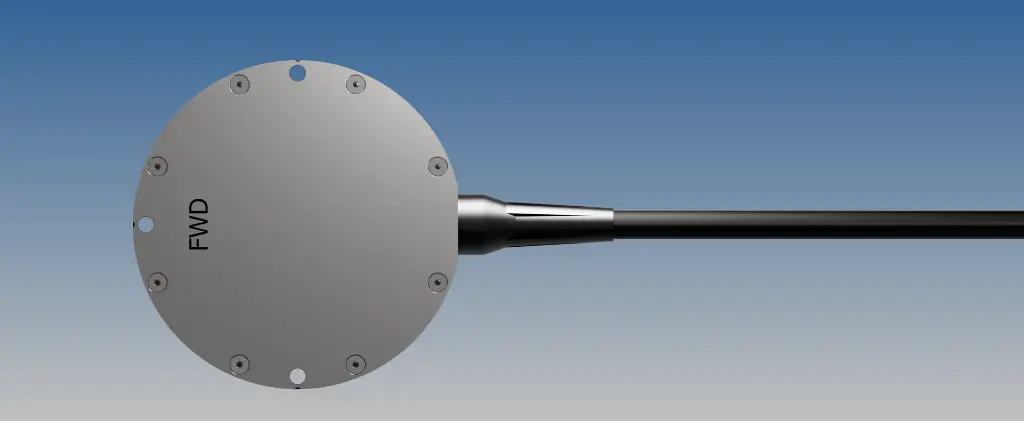

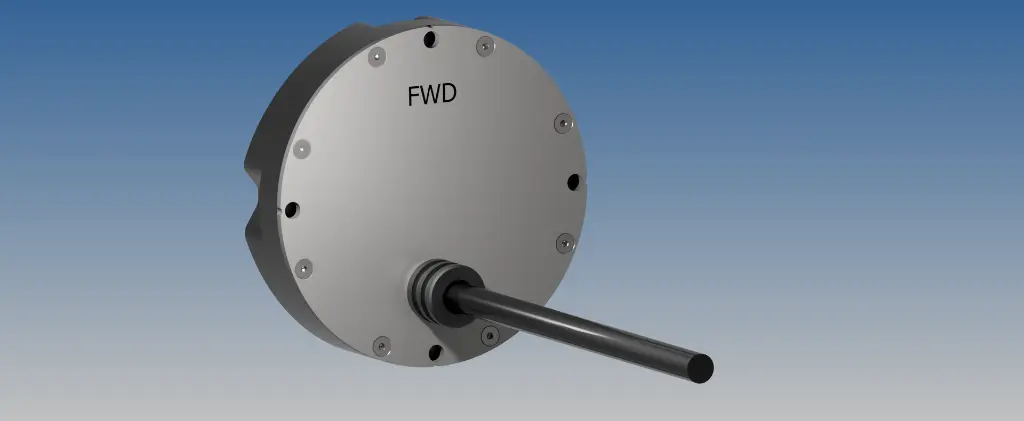

Rear O-ring interface for tight integration

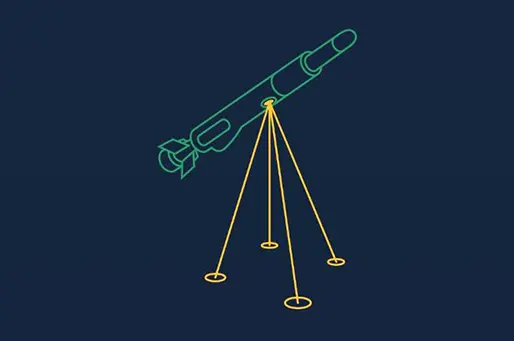

AHRS sensor assist for increased accuracy
Technical specifications
Mechanical
- Device diameter 90 mm
-
Device height
34 mm
-
Device weight (air)
200 grams
- Device weight (submerged) 125 grams
-
Depth rating
1,000 meters
- Materials PEEK (housing)
- Stainless steel 316 (back plate)
-
Operating temperature
-5 to 60 °C
Electrical / Interface
-
Input voltage
10-30 Vdc
-
Power consumption
8 W (average)
-
Power-on current surge
30 W (maximum)
- Physical interface 8 wires (pwr/serial/Ethernet)

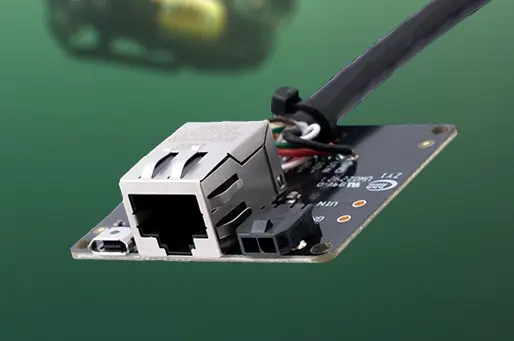

- with interface module
- Side cable - 3 meter cable (PUR 6.7 mm diameter)
- Rear O-ring interface - 1 meter cable (PUR 6.7 mm diameter)
-
Indicator
Status LED (Power, Lock)
- Communication Ethernet, Serial (RS232)
-
Protocols
Water Linked API, PD0, PD4, PD6
URL
Acoustic / Performance
-
Transducer frequency
625 kHz
-
Transducer setup
4-beam convex Janus array
-
Transducer beam angle
22.5 degrees
-
Ping rate
4-15 Hz (adaptive to altitude)
-
Sensor assist
Integrated AHRS/IMU
-
Min altitude
5 cm
- Max altitude 100 meters
- (maximum altitude dependent on seabed conditions, salinity levels, etc.)
-
Max velocity
5 m/s
-
Velocity resolution
0.1 mm/s
- Long term accuracy ±1.01 % (Standard version)
- ±0.1 % (Performance version)
Approvals
-
CE certificate
Yes - RoHS compliant Yes
Compact size, long-term accuracy
Performance version
±0.1%
Standard version
±1.01%
As underwater vehicles become smaller and more accessible, the demand for affordable, lightweight sensors is skyrocketing. Stay ahead of the curve and make sure that you meet your customers' needs.
Follow the industry trend
The DVL A100 achieves exceptional performance in a package that fits the smallest of vehicles, whether they are ROVs, AUVs or USVs.
- Scott McLay, Chef Commercial Officer, Water Linked
